TCG057VGLBC-G00 Kyocera 5.7INCH LCM 640×480RGB 210NITS WLED TTL INDUSTRIAL LCD DISPLAY

Name: TCG057VGLBCG00 Kyocera 57INCH LCM 640480RGB 210NITS WLED TTL INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

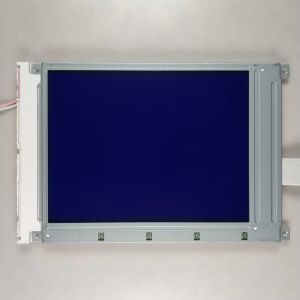

Quality TCG057VGLBC-G00 Kyocera 5.7INCH LCM 640×480RGB 210NITS WLED TTL INDUSTRIAL LCD DISPLAY for sale

Brand Name : Kyocera

Model Number : TCG057VGLBC-G00

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 200PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

BRAND : Kyocera

MODEL NUMBER : TCG057VGLBC-G00

SIZE : 5.7INCH

RESOLUTION : 640×480RGB

BRIGHTNESS : 210 cd/m² (Typ.)

Signal Interface : Parallel RGB (1 ch, 6-bit) , 40 pins Connector

Lamp Type : 3 strings WLED , 40K hours , Without Driver

Environment : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

Kyocera TCG057VGLBC-G00 Application Details

Basic Information :	Brand TCG057VGLBC-G00Model Type a-Si TFT-LCD , LCM Used For 5.7 inchScreen Size Alias -
Environment :	Storage Temp. -30 ~ 80 °C Operating Temp. -20 ~ 70 °C RoHS -Vibration

Kyocera TCG057VGLBC-G00 Mechanical Details

Pixel Features :	Resolution 640(RGB)×480, VGA Dot Pitch(mm) 0.060×0.180 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.180×0.180 (H×V) [141PPI]
Mechanical Size :	Active Area(mm) 115.2(H) × 86.4(V) Bezel Area(mm) 117.2(H) × 88.4(V) Outline Dim.(mm) 127.2(H) × 100.4(V) Depth(mm) 4.94/7.45 (Typ./Max.)
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 4:3 (H:V) Orientation Landscape type
Touch Panel :	Touch Points - Touch Panel 4-wire Resistive Touch, G/G
Mounting :	Without
Other Spec :	Weight TBD Treatment Glare (Haze 0%), Antireflection

Kyocera TCG057VGLBC-G00 Optical Details

Basic Information :	Luminance(cd/m²) 210 (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive) Viewing Angle 80/80/80/80 (Typ.)(CR≥5) Display Mode TN, Normally White, Transmissive Best View on - Response(ms) 10/25 (Typ.)(Tr/Td)
Color Performance :	White Coordinate Wx:0.330; Wy:0.350 Display Colors 262K (6-bit) Color Temperature 5598K White Uniformity -
1931 Color Gamlt :	NTSC Ratio 52% sRGB 70% coverage Adobe RGB 54% coverage DCI-P3 54% coverage Rec.2020 39% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Kyocera TCG057VGLBC-G00 Electronics Details

Reverse Scan :	Yes (U/D, L/R)

Kyocera TCG057VGLBC-G00 Interface Detail

Signal Electrical :	Voltage Supply 3.3V (Typ.) Current Supply 170/220mA (Typ./Max.)
Signal Type :	Parallel RGB (1 ch, 6-bit) Logic Voltage -
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration IRISO IMSA-9681S-40A-GF 0.5 mm 40 pins 1 pcs

Kyocera TCG057VGLBC-G00 Backlight Details

Backlight Features :	Type WLED Quantity 3 strings Position Edge light type Replacement - Shape 3 strings Life Time 40K(Typ.) (Hours)
Lamp Electrical :	Voltage Supply 21.7/24.5V (Typ./Max.) Current Supply 15mA (Typ.)
Interface Features :	Position - Type Included in panel signal interface
Backlight Driver :	No

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
